The Storm 3 features a progressive off-road design and features that’ll help you discover your favorite way to ride. It’s built for off-road adventure, but the 6061 aluminum Storm 3 is more than happy to lead a double life on city streets and park paths.
AVAILABLE SIZES: MEDIUM & LARGE
| Frame |
6061 Alloy, Internal Routing, Smooth Welds |
| Fork |
Suntour XCT30 HLO DS, 100mm, 42mm Offset (27.5), 46mm Offset (29) |
| Headset |
Zero Stack |
| Shifter Front |
Shimano Alivio SL-M3100 |
| Shifter Rear |
Shimano Alivio SL-M3100 |
| Front Derailleur |
Shimano Altus FD-M2020 |
| Rear Derailleur |
Shimano Alivio RD-M3100 Shadow |
| Cassette |
Shimano Acera CS-HG2009, 11-36T, 9 Speed |
| Chain |
KMC Z99 |
| Crankset |
Prowheel ZEPHYR-501, 36/22T, 170mm (XXS, XS, S), 175mm (M, L, XL) |
| Bottom Bracket |
Cartridge, BSA Threaded |
| Pedals |
VP Nylon Flat |
| Grips |
Norco |
| Handlebar |
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise |
| Stem |
Alloy 60mm, 31.8mm Clamp |
| Seat Post |
Alloy 31.6mm |
| Saddle |
Norco XC |
| Front Brake |
Tektro HD-M275 Hydraulic, Resin Pads |
| Front Brake Rotor |
Tektro 160mm |
| Rear Brake |
Tektro HD-M275 Hydraulic, Resin Pads |
| Rear Brake Rotor |
Tektro 160mm |
| Brake Levers |
Tektro HD-M275, HD-M276 Short Reach on Step-Thru |
| Front Hub |
Alloy QR, 9x100mm QR, 6 Bolt |
| Rear Hub |
Alloy QR, 10x135mm QR, HG, 6 Bolt |
| Rims |
WTB SX19 |
| Spokes/Nipples |
Stainless Black |

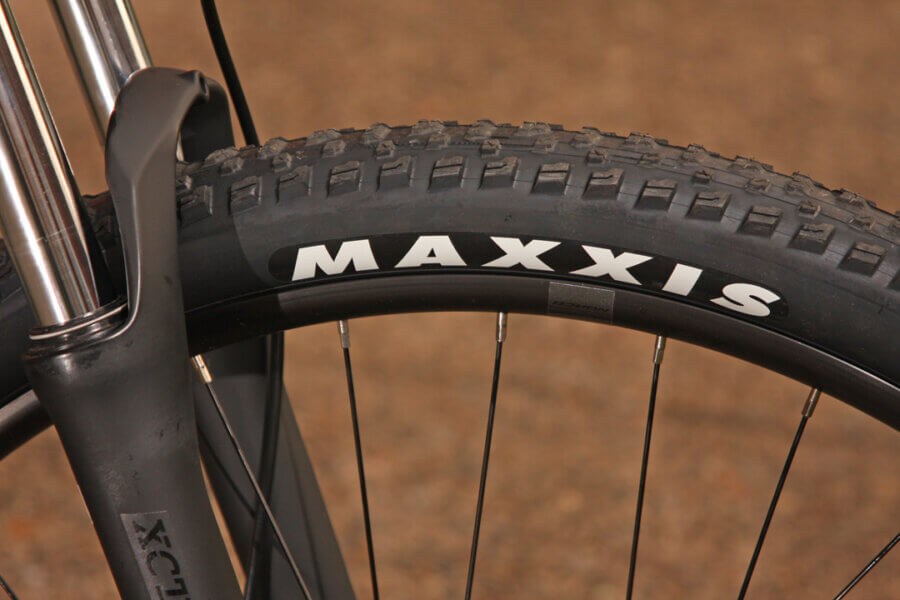

| Front Tire |
Maxxis Rekon DK60 2.25″ |
| Rear Tire |
Maxxis Rekon DK60 2.25″ |
| Rim Tape |
Nylon+PVC rim tape |
